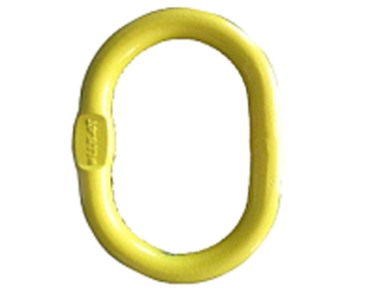

G80 A343 Welded master link

Name:G80 A343 Welded master link

Details

Product Features:

Standard:EN1677-4

Alloy steel,quenched and tempered.

Proof load at 2.5 times Working Load Limit

Surface Finish:Powder Plastified

Suitable for 1 or 2 legs G80 Chain sling as per EN818-4

There will be pressing flat only on request

Ultimate load is 4 times the Working load limit

Regular mark:Size, WLL, CE

Package: Carton, Plywood/Steel pallet

For use with wire rope sling, refer to Din3088 standard

For use with synthetic sling, refer to EN1492-1 standard




Product code Size Kg/pc WLL/T B.L/T
HLF01P01 6-8 0.2 1.2 4.8
HLF01P02 7/8-8 0.3 2 8
HLF01P03 10-8 0.676 3.2 12.8
HLF01P04 13-8 1.47 5.4 21.6
HLF01P05 16-8 2.3 8.2 32
HLF01P06 20-8 3.3 12.5 50
HLF01P07 22-8 7 15 60
HLF01P08 26-8 11.6 21.2 84.8
HLF01P09 32-8 20 32 128
