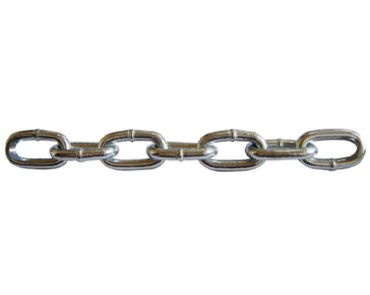

Name：DIN5685A/C Short/Long Link Chain
Details
Surface Finish：electic galvanised
Size from 2mm to 13mm
Package: Cartons, pallet
| Product | SIZE | INSIDE | OUTSIDE | WEIGHT | WORKING | BREAKING | GRADE |
| Code | LENGTH | WIDTH | PER 100M | LOAD | LOAD | ||
| MM | MM | MM | KG | N | N | ||
| HLF15H01 | 2 | 12 | 8 | 7 | 500 | 1250 | A |
| 22 | 6 | C | |||||
| HLF15H02 | 2.5 | 14 | 10 | 11 | 750 | 2000 | A |
| 24 | 10 | C | |||||
| HLF15H03 | 3 | 16 | 12 | 16.5 | 1120 | 2800 | A |
| 26 | 15 | C | |||||
| HLF15H04 | 3.5 | 18 | 14 | 22.2 | 1500 | 38500 | A |
| 28 | 20 | C | |||||
| HLF15H05 | 4 | 19 | 16 | 30 | 2000 | 5000 | A |
| 32 | 27 | C | |||||
| HLF15H06 | 4.5 | 20 | 18 | 39.5 | 2500 | 6300 | A |
| 34 | 35 | C | |||||
| HLF15H07 | 5 | 21 | 20 | 50 | 3150 | 7750 | A |
| 35 | 43 | C | |||||
| HLF15H08 | 5.5 | 23 | 22 | 60.5 | 3800 | 9500 | A |
| 38.5 | 52 | C | |||||
| HLF15H09 | 6 | 24 | 24 | 73 | 4500 | 11500 | A |
| 42 | 63 | C | |||||
| HLF15H10 | 6.5 | 26 | 26 | 86 | 5400 | 13500 | A |
| 45.5 | 74 | C | |||||
| HLF15H11 | 7 | 28 | 28 | 100 | 6000 | 15000 | A |
| 49 | 86 | C | |||||
| HLF15H12 | 8 | 32 | 32 | 130 | 8000 | 20000 | A |
| 52 | 110 | C | |||||
| HLF15H13 | 8.5 | 34 | 34 | 149 | 9000 | 22500 | A |
| 56 | 125 | C | |||||
| HLF15H14 | 9 | 36 | 36 | 165 | 10000 | 25000 | A |
| 59 | 141 | C | |||||
| HLF15H15 | 10 | 40 | 40 | 205 | 12500 | 31000 | A |
| 65 | 175 | C | |||||
| HLF15H16 | 11 | 44 | 44 | 250 | 15000 | 38000 | A |
| 72 | 211 | C | |||||
| HLF15H17 | 12 | 48 | 48 | 290 | 18000 | 45000 | A |
| 78 | 255 | C | |||||
| HLF15H18 | 13 | 52 | 52 | 345 | 21200 | 53000 | A |
| 82 | 295 | C |
