Screw Eye Bolt G-275

Name:Screw Eye Bolt G-275

Details

Product Features:

1.Size: 1/4'-5/8"

2.Material:Carbon steel

3.Surface: Electric galvanised or hot dip galvanised or others

4.Technology : drop forged, Safety Factor - 5:1

5. Marking:SIZE. or as per customers' request.

6. Package:PP Bag / Carton,  Plywood/Steel pallet

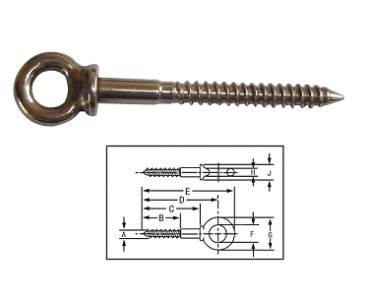

Product Code Shank Dia.& Length (in) Dimensions(in) Weight Each (kgpc)
A B C D E F G H J
HLF02E01 1/4×2 0.25 1.5 2 2.5 2.94 0.5 0.88 0.19 0.47 0.02
HLF02E02 5l6×2-14 0.31 1.69 2.25 2.94 3.5 0.63 1.13 0.25 0.56 0.045
HLF02E03 38×2-12 0.38 1.88 2.5 3.28 3.97 0.75 1.38 0.3l 0.66 0.086
HLF02E04 12×3-14 0.5 2.44 3.25 4.25 5.12 1.OO 1.75 0.38 0.9l 0.17
HLF02E05 58×4 0.63 3 4 5.31 6.44 1.25 2.25 0.5 1.12 0.389
