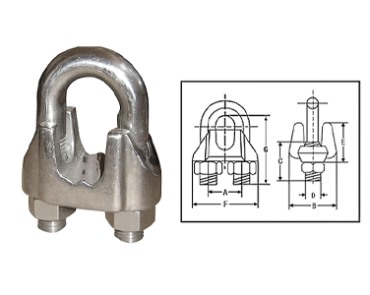

U.S. Type Galv Malleable Wire Rope Clips

Name：U.S. Type Galv Malleable Wire Rope Clips

Details

Product Features:

1.Size：From 1/16" to 1-1/8"

2.Material: Malleable Iron, Stainless steel 304 or 316

3.Surface:  Electric galvanised or  others

4.Technology :  Casting

5. Marking:SIZE. or as per customers' request.

6. Usage: For Fixing the wire rope.

7. Package: Gunny bag or carton and pallet / by customer requirements.




Product Code SIZE Dimensions(in) Weight Each (Kg/pc)
A B C D E F G
HLF02C01 1/16” 0.38 0.45 0.45 0.15 0.45 0.69 0.65 0.0136
HLF02C02 1/8” 0.5 0.56 0.5 0.18 0.5 0.94 0.81 0.0182
HLF02C03 3/16” 0.56 0.63 0.56 0.25 0.56 1.06 0.94 0.0286
HLF02C04 1/4” 0.75 0.75 0.75 0.31 0.75 1.31 1.19 0.0591
HLF02C05 5/16” 0.75 0.75 0.84 0.31 0.84 1.44 1.31 0.0682
HLF02C06 3/8” 0.88 0.88 1 0.38 1 1.63 1.63 0.0955
HLF02C07 7/16” 1.06 1.06 1.19 0.44 1.19 1.88 2 0.1682
HLF02C08 1/2” 1.06 1.06 1.19 0.44 1.19 1.88 2 0.1682
HLF02C09 9/16” 1.25 1.28 1.38 0.5 1.38 2.09 2.31 0.2682
HLF02C10 5/8” 1.25 1.28 1.38 0.5 1.38 2.09 2.31 0.2682
HLF02C11 3/4” 1.31 1.56 1.56 0.56 1.56 2.38 2.56 0.3818
HLF02C12 7/8” 1.63 1.81 1.81 0.63 1.81 2.88 3.06 0.5682
HLF02C13 1 1.88 2 2 0.63 2 3 3.44 0.7545
HLF02C14 11/8” 2 2.06 2.75 0.75 2.75 3.38 4 1.1045
