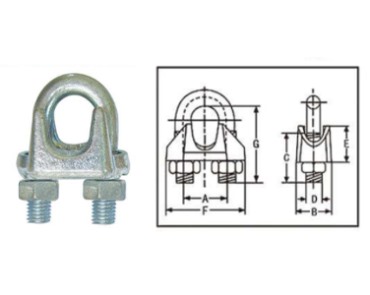

Galv Malleable Wire Rope Clips TypeA

Name:Galv Malleable Wire Rope Clips TypeA

Details

Product Features:

1.Size:From 6mm to 50mm

2.Material: Malleable Iron

3.Surface:  Electric galvanised or  others

4.Technology : Casting

5. Marking:SIZE. or as per customers' request.

6. Usage: For Fixing the wire rope.

7. Package: Gunny bag or carton and pallet / by customer requirements.




Product Code Size/mm Dimensions(mm) Weight Each (Kg/pc)
A B C D E F G
HLF05C01 6 12 17 14 5 14 23 24 2.5
HLF05C02 8 15 21 16 6 17 28 30 4.5
HLF05C03 10 19 28 20 8 21 38 37 9
HLF05C04 12 24 34 25 10 27 45 47 18
HLF05C05 15 29 40 30 12 32 52 56 28
HLF05C06 20 36 47 36 14 38 62 70 47
HLF05C07 22 40 52 39 16 43 69 77 62
HLF05C08 25 43 56 44 18 50 76 85 85
HLF05C09 28 48 62 48 20 57 85 95 120
HLF05C10 32 55 67 51 22 61 93 108 157
HLF05C11 40 64 81 62 24 73 111 120 261
HLF05C12 45 72 88 70 27 86 123 137 363
HLF05C13 50 80 95 80 30 95 135 154 480
