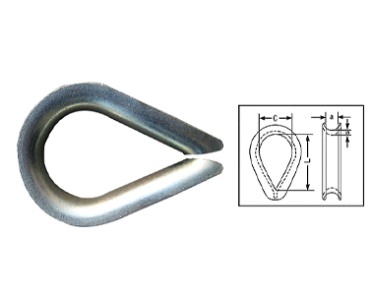

Name：DIN 6899 Type"B"Wire Rope Thimbles
Details
Product Features:
Match with Steel wire rope
Size from 2.5 mm 到 36mm
Surface Finish： electic galvanised
Marking:SIZE
Package:Carton. PP bag , Plywood/Steel pallet
| Product Code |
Rope Dia. (mm) |
Dimensions(in) | Weight Each kg／pc | |||
| A | L | C | S | |||
| HLF06DOl | 2.5 | 3 | 19 | 12 | 1.6 | 0.005 |
| HLF06D02 | 3.5 | 4 | 21 | 13 | 1.6 | 0.008 |
| HLF06D03 | 4 | 5 | 23 | 14 | 1.9 | 0.01 |
| HLF06D04 | 5 | 6 | 25 | 16 | 2.4 | 0.016 |
| HLF06D05 | 6 | 7 | 28 | 18 | 2.4 | 0.019 |
| HLF06D06 | 7 | 8 | 32 | 20 | 2.8 | 0.03 |
| HLF06D07 | 9 | 10 | 38 | 24 | 3.1 | 0.047 |
| HLF06D08 | 11 | 12 | 45 | 28 | 3.3 | 0.068 |
| HLF06D09 | 13 | 13 | 48 | 30 | 3.3 | 0.08 |
| HLF06D10 | 13 | 14 | 51 | 32 | 3.7 | 0.1 |
| HLF06D11 | 15 | 16 | 58 | 36 | 3.8 | 0.145 |
| HLF06D12 | 16 | 17 | 61 | 38 | 4.7 | 0.18 |
| HLF06D13 | 17 | 18 | 64 | 40 | 4.7 | 0.2 |
| HLF06D14 | 18 | 20 | 72 | 45 | 5.7 | 0.29 |
| HLF06D15 | 20 | 22 | 80 | 50 | 5.7 | 0.32 |
| HLF06D16 | 22 | 24 | 90 | 56 | 6.5 | 0.47 |
| HLF06D17 | 24 | 26 | 99 | 62 | 6.8 | 0.59 |
| HLF06D18 | 26 | 28 | 112 | 70 | 8 | 0.8 |
| HLF06D19 | 28 | 30 | 120 | 75 | 8 | 1.1 |
| HLF06D20 | 30 | 32 | 128 | 80 | 8 | 1.23 |
| HLF06D21 | 32 | 34 | 152 | 92 | 8.5 | 1.56 |
| HLF06D22 | 34 | 36 | 160 | 100 | 8.5 | 1.76 |
| HLF06D23 | 36 | 38 | 176 | 110 | 8.5 | 1.92 |
