Other Accessories

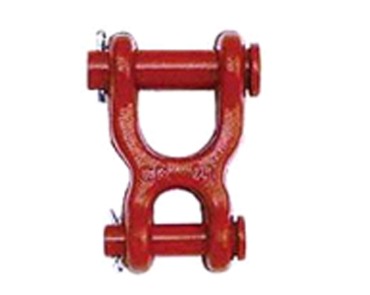

Name：DOUBLE CLEVIS LINK
Details
Size from 1/4" to 5/8"
Surface Finish:Electic galvanised or color painted
Marking:SIZE
Drop forged，Quenched and tempered ,with alloy pin
carbon steel G43 or Alloy steel G70
Package:Carton, Plywood/Steel pallet
| Product code | Size (in) | WLL（lbs） | Weight | Dimensions (in) | ||||||
| (lbs) | A | B | C | D | E | F | G | |||
| HLF13N01 | 1/4" | 2600 | 0.44 | 0.5 | 0.75 | 0.5 | 0.31 | 0.38 | 0.75 | 0.5 |
| HLF13N02 | 5/16"-3/8" | 5400 | 0.81 | 0.56 | 1 | 0.63 | 0.44 | 0.47 | 1 | 1.81 |
| HLF13N03 | 7/16" | 7000 | 1.28 | 0.69 | 1.13 | 0.69 | 0.56 | 0.59 | 1.09 | 2.19 |
| HLF13N04 | 1/2" | 9200 | 1.68 | 0.81 | 1.25 | 0.75 | 0.63 | 0.66 | 1.25 | 2.47 |
| HLF13N05 | 5/8" | 17500 | 2.91 | 0.78 | 1.63 | 1 | 0.75 | 0.83 | 1.51 | 3.03 |
