Other Accessories

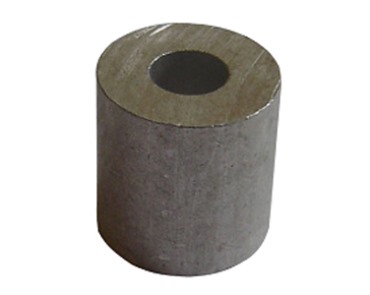

Name：ALUMINIUM STOP BUTTON SLEEVE
Details
Suitable for Steel wire rope
Size from 1/16" to 3/8"
Marking:SIZE
Package:Carton, Plywood/Steel pallet
| Product code | Spec. | Ins.dia. | Out .dia. | Length | Weight |
| Size | A(mm) | B(mm) | C(mm) | (kg ) | |
| HLF19N01 | 1/16" | 1.98 | 6.35 | 0.00028 | |
| HLF19N02 | 3/32" | 3.3 | 8.73 | 7.94 | 0.00113 |
| HLF19N03 | 1/8" | 3.96 | 8.73 | 7.94 | 0.00095 |
| HLF19N04 | 5/32" | 4.75 | 11.11 | 8.73 | 0.0019 |
| HLF19N05 | 3/16" | 5.66 | 11.11 | 8.73 | 0.0018 |
| HLF19N06 | 7/32" | 6.35 | 11.11 | 8.73 | 0.0015 |
| HLF19N07 | 1/4" | 7.37 | 17.46 | 17.46 | 0.0092 |
| HLF19N08 | 5/16" | 9.53 | 17.46 | 17.46 | 0.0077 |
| HLF19N09 | 3/8" | 11.13 | 17.46 | 17.46 | 0.0077 |
