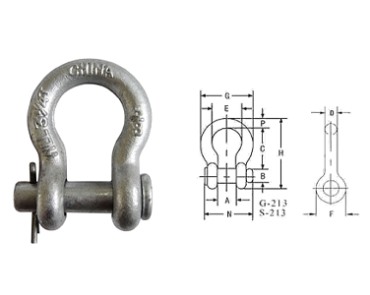

Name：G213 US ROUND PIN ANCHOR SHACKLE
Details
Product Features:
1. Size：From 3/16" to 3"
WLL: From 0.3T to 85T
2. For lifting application. Drop forged, quenched and tempered
Body: Carbon steel. Pin: Alloy steel
Min breaking strength is 4 times or 6 times of the working load limit.
3. Surface Finish is usually Electric galvanised or hot dip galvanised
Powder Plastified is also available
4. Marking: WLL, SIZE. or as per customers' request.
5. Package：PP Bag / Carton. Plywood/Steel pallet
| Product Code | Weight Each(kg) | Nominal Size(in.) | WLL (t) | Dimensions(mm) | ||||||||
| 213 | 213 | A | B | C | D | E | F | G | H | N | ||
| HLF03A01 | 0.06 | 1/4 | 1/2 | 11 9 | 7.85 | 28.7 | 6.35 | 19.8 | 15.5 | 32.5 | 46.7 | 34 |
| HLF03A02 | 0.08 | 5/16 | 3/4 | 13.5 | 9.65 | 31 | 7.85 | 21.3 | 19.1 | 37.3 | 53 | 40.4 |
| HLF03A03 | 0.13 | 3/8 | 1 | 16.8 | 11.2 | 36.6 | 9.65 | 26.2 | 23.1 | 45.2 | 63 | 47.2 |
| HLF03A04 | 0.17 | 1/2 | 2 | 19.1 | 12.7 | 42.9 | 11.2 | 29.5 | 26.9 | 51.5 | 74 | 54 |
| HLF03A05 | 0.32 | 5/8 | 3-1/4 | 20.6 | 16 | 47.8 | 12.7 | 33.3 | 30.2 | 58.5 | 83.5 | 60.5 |
| HLF03A06 | 0.68 | 1 | 8-1/2 | 26.9 | 19.1 | 60.5 | 16 | 42.9 | 38.1 | 74.5 | 106 | 74 |
| HLF03A07 | 1.05 | 1-1/4 | 12 | 31.8 | 22.4 | 71.5 | 19.1 | 51 | 46 | 89 | 126 | 87 |
| HLF03A08 | 1.58 | 1-1/2 | 17 | 36.6 | 25.4 | 84 | 22.4 | 58 | 53 | 102 | 148 | 96.5 |
| HLF03A09 | 2.27 | 1-3/4 | 25 | 42.9 | 28.7 | 95.5 | 25.4 | 68.5 | 60.5 | 119 | 167 | 115 |
| HLF03A10 | 3.16 | 2 | 35 | 46 | 31.8 | 108 | 29.5 | 74 | 68.5 | 131 | 190 | 130 |
