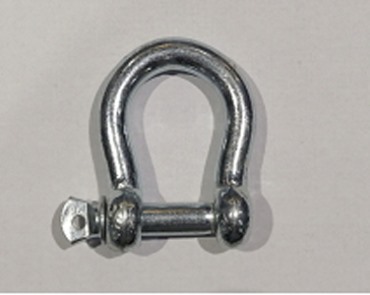

Name：EUROPEAN BOW SHACKLE WITH SCREW PIN
Details
Product Features:
1. Size：From M5 to M36
2. Carbon steel.
3. Surface Finish:Electric galvanised
4. Package：PP Bag / Carton. Plywood/Steel pallet
| Product Code | Pin P(mm) | Body B(mm) | Jaw J(mm) | Inside L(mm) | Breaking Load* | Weight Each(g) |
| HLF09A01 | 4.0 | 4.0 | 8.0 | 16 | 800kgs | 7 |
| HLF09A02 | 5.0 | 5.0 | 10.0 | 20 | 1500kgs | 12 |
| HLF09A03 | 6.0 | 6.0 | 13.0 | 25 | 1950kgs | 24 |
| HLF09A04 | 8.0 | 8.0 | 16.0 | 32 | 3000kgs | 53 |
| HLF09A05 | 9.5 | 9.5 | 19.0 | 38 | 4800kgs | 97 |
| HLF09A06 | 11.0 | 11.0 | 22.0 | 44 | 6000kgs | 152 |
| HLF09A07 | 12.7 | 12.7 | 26.0 | 52 | 7500kgs | 237 |
| HLF09A08 | 16.0 | 14.3 | 29.0 | 58 | 10000kgs | 450 |
| HLF09A09 | 19.0 | 16.0 | 32.0 | 64 | 14000kgs | 585 |
