Turnbuckles

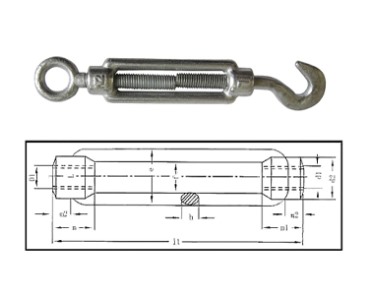

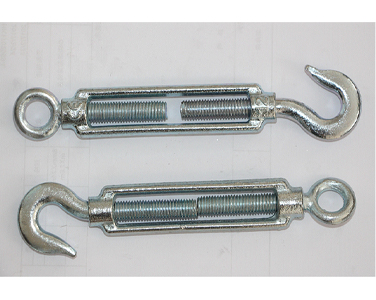

Name：DIN1480 TURNBACKLES HOOK&HOOK/HOOK&EYE/ EYE&EYE
Details
Product Features:
1. Size：From M5 to M36
2. Carbon steel.
3. Surface Finish:Electric galvanised
4. Package：PP Bag / Carton. Plywood/Steel pallet
| dl | M6 | M8 | M10 | M12 | M16 | M20 | M24 | M26 | M30 | M36 | M42 | M48 |
| Product | HLF03 | HLF03 | HLF03 | HLF03 | HLF03 | HLF03 | HLF03 | HLF03 | HLF03 | HLF03 | HLF03 | HLF03 |
| Code | B01 | B02 | B03 | B04 | B05 | B06 | B07 | B08 | B09 | Bl0 | Bll | B12 |
| d2 | 12 | 15 | 18 | 21 | 27 | 34 | 39 | 45 | 55 | 63 | 80 | 80 |
| e | 19 | 23 | 30 | 34 | 42 | 52 | 60 | 74 | 86 | 104 | 135 | 135 |
| f | 9 | 1l | 14 | 16 | 20 | 24 | 28 | 34 | 40 | 50 | 65 | 65 |
| h min | 6 | 8 | 9 | 11 | 14 | 17 | 20 | 23 | 28 | 32 | 40 | 40 |
| L1 | 110 | 110 | 125 | 125 | 170 | 200 | 255 | 255 | 295 | 330 | 355 | 355 |
| m1 | 12 | 15 | 18 | 2l | 27 | 34 | 39 | 45 | 55 | 63 | 78 | 78 |
| m2max | 6 | 8 | 9 | 1l | 14 | 17 | 20 | 23 | 28 | 32 | 39 | 39 |
