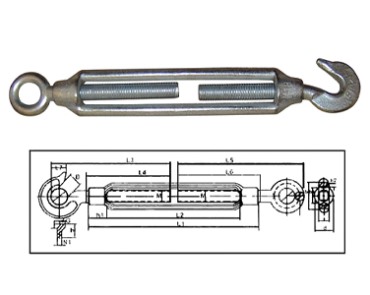

TURNBUCKLES COMMERCIAL TYPE (MALLEABLE IRON) HOOK&HOOK/HOOK&EYE/EYE&EYE

Name：TURNBUCKLES COMMERCIAL TYPE (MALLEABLE IRON) HOOK&HOOK/HOOK&EYE/EYE&EYE

Details

Product Features:

1. Size：From M6 to M30

2. Carbon steel.

3. Surface Finish:Electric galvanised

4. Package：PP Bag / Carton.  Plywood/Steel pallet




Product Code SWL kg A B C D E F G L Weight Each kg
HLF05B01 100 6×100mm l45 215 12 10 6 6 100 0.16
HLF05B02 200 8×l25mm 185 280 14 12 8 8 125 0.24
HLF05B03 300 10×l50mm 210 325 16 14 9 9 150 0.39
HLF05B04 500 12×200mm 275 430 19 18 11 11 200 0.64
HLF05B05 1000 16×250mm 345 540 23 24 14 14 250 1.44
HLF05B06 1500 20×300mm 435 670 28 26 18 18 300 2.45
HLF05B07 2200 22×320mm 480 740 34 32 20 20 325 3.6
HLF05B08 3000 24×350mm 555 830 36 36 21 2l 350 5
