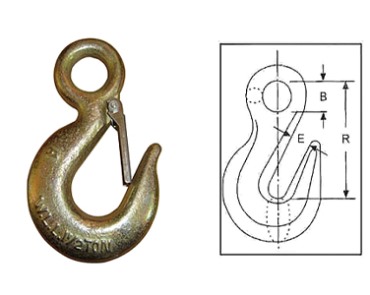

EYE SLIP HOOKS H324/A324

Name：EYE SLIP HOOKS H324/A324

Details

Product Features:

Forged, Quenched and Tempered.

Size：1/4" 5/16" 3/8" 1/2"

Surface Finish:Electic galvanised or Color painted

Max proof load is 2.5 times of the working load limit

Min.Breaking strength is 4 times of the WLL

Marking:SIZE,FORGED, GRADE

Package:Carton, Plywood/Steel pallet



Product Size of  Working Load Limit（lbs） Dimensions(in) Weights
 Code   chain H-324 A-324 B E R (lbs)
HLF04G01 1/4” 1950 2750 1/2 15/16 2-17/32 0.4
HLF04G02 5/16” 2875 4300 5/8 1-1/16 2-29/32 0.7
HLF04G03 3/8” 4000 5250 23/32 1/5-16 3-5/16 1
HLF04G04 7/16” 5000 7000 13/16 1-9/16 3-7/8 1.56
HLF04G05 1/2” 6500 9000 15/16 1-11/16 4-9/32 2.31
HLF04G06 5/8” 9250 13500 1-1/8 2 5-7/32 37.5
HLF04G07 3/4” - 19250 1-3/8 2-1/8 5-25/32 6.56
