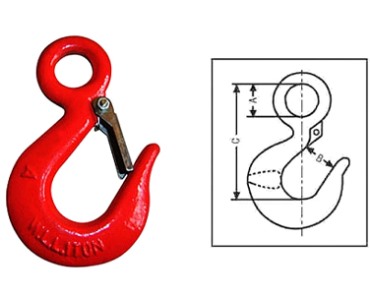

320A/C Eye hoist hook with latch

Name：320A/C Eye hoist hook with latch

Details

Product Features:

Forged, Quenched and Tempered.

Available in carbon steel and alloy steel

Alloy steel:Ultimate load is 4.5 times Working Load Limit

Carbon steel: Ultimate load is 5 times Working Load Limit

Surface Finish：Powder Plastified

Regular mark: size

Package: Carton, Plywood/Steel pallet




Product Working Load Limit(tons) Dimensions(in) Weights Weights
 Code  (lbs)  (lbs)
Carbon Alloy A B C  w/latch
HLF05G01 1/2 3/4 0.63 0.87 2.8 0.35 0.37
HLF05G02 3/4 1 0.75 0.94 3.22 0.55 0.57
HLF05G03 1 1 1/2 0.91 1.03 3.66 0.75 0.77
HLF05G04 1 1/2 2 1.12 1.06 4.09 1.25 1.28
HLF05G05 2 3 1.25 1.22 4.69 1.7 0.73
HLF05G06 3 5 1.56 1.5 5.78 3.6 3.66
HLF05G07 5 7 2 1.88 7.38 7.08 7.19
HLF05G08 7 1/2 11 2.44 2.25 9.06 13 13.17
HLF05G09 10 15 2.83 2.52 10.09 22 22.15
HLF05G10 15 22 3.54 3.46 12.2 33.8 -
