G80 Products Show

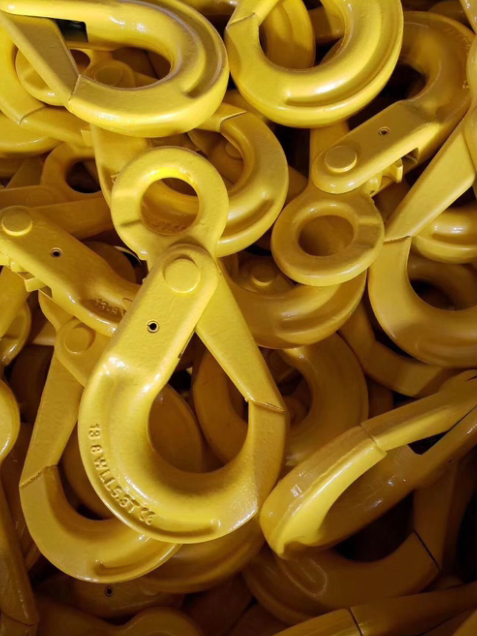

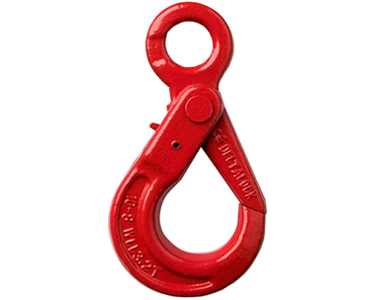

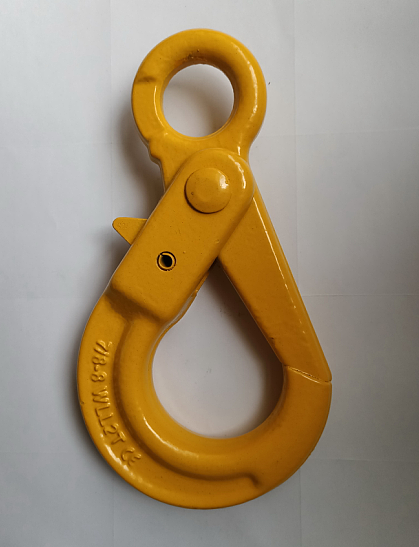

Name：G80 Eye self locking safety hook
Details
Product Features:
Forged alloy steel, Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Proof test at 2.5 times Working Load Limit
Ultimate load is 4 times Working Load Limit
Surface Finish：Powder Plastified
Regular mark: size, WLL, CE
Package: Carton, Plywood/Steel pallet
| Product code | Size | Kg/pc | WLL/T | B.L/T |
| HLF77P01 | 6-8 | 0.5 | 1.2 | 4.8 |
| HLF77P02 | 7/8-8 | 0.8 | 2 | 8 |
| HLF77P03 | 10-8 | 1.5 | 3.2 | 12.8 |
| HLF77P04 | 13-8 | 3.2 | 5.4 | 21.6 |
| HLF77P05 | 16-8 | 6.1 | 8.2 | 32.8 |
| HLF77P06 | 18/20-8 | 7.5 | 12.5 | 50 |
| HLF77P07 | 22-8 | 13.4 | 15 | 60 |
| HLF77P08 | 26-8 | 14.5 | 21.2 | 84.8 |
| HLF77P09 | 32-8 | - | 31.5 | 126 |
